Report AX 2012 : example Class Data processing
General
//To deploy a report on an AOS we need to run the service Remote registrery.
AX2012 Create SSRS Report using Data Provider Classes
RDP implments the standard MVC(Model View Controller) design pattern.
What is MVC?
Model-view-controller (MVC) is a pattern used to isolate business logic from the user interface.
Model: Responsible for retrieving data and for business logic, this can included queries, data methods,
or other classes that are designed to retrieve data.
View: Responsible for the User Interface, this can also be thought of as the design for the report.
Controller: Orchestrates the flow between Model and View
CONTRACT : classDeclaration : [DataContractAttribute]
methods : [DataMemberAttribute]
//This class is used to create parameters, parm methods for the reports
//the contract is processing through the builder with the following attribute of the contract class.
//builder class to the contract and adding the logic to lookup the data for the contract parmmethods.
CONTROLLER : MAIN method is the method that define the report name. It is the starting point of the report
DATA PROVIDER : processReport() fill the tmp table.
Temporation table : set CreateTransactionId = Yes ?
DP extends
If extends SRSReportDataProviderBase -> We must use a tempporary table TempDB.
If extends -> We must use a regular table and do a CreateTransactionId.
//1)
[
SRSReportQueryAttribute(queryStr(SPLWasteSMAQuotationQuery))
]
class SPLWasteSMAQuotationJourDP extends SRSReportDataProviderBase
{
SPLWasteSMAQuotationJourReportTmp SMAQuotationJourReportTmp; // -> TempDB
}
//2)
[
SRSReportParameterAttribute(classStr(SalesQuotationContract))
]
public class SalesQuotationDP extends SrsReportDataProviderPreProcess
{
SalesQuotationDetailsTmp salesQuotationTmp; // -> regular Table with CreateTransactionId : Yes
SalesQuotationHeaderTmp salesQuotationHeaderTmp;
}
// Method getTableTMP() ... , This method is used in VS to contruct the Query :
[SRSReportDataSetAttribute(tablestr(SPLWasteSMAQuotationJourReportTmp))]
public SPLWasteSMAQuotationJourReportTmp getSMAQuotationJourReportTmp()
{
select * from SMAQuotationJourReportTmp;
return SMAQuotationJourReportTmp;
}

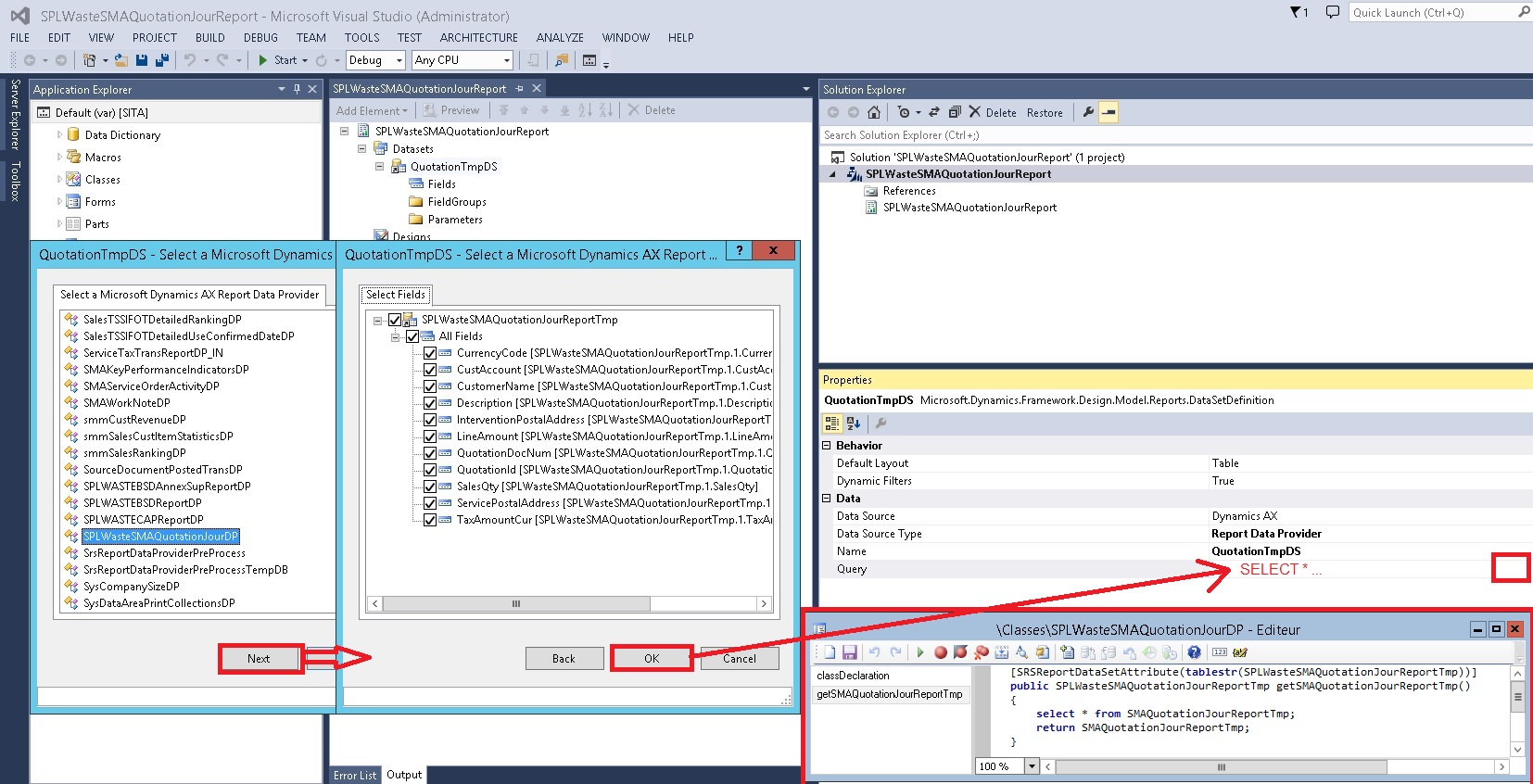

In the VS we construct the query with the DP.
Query

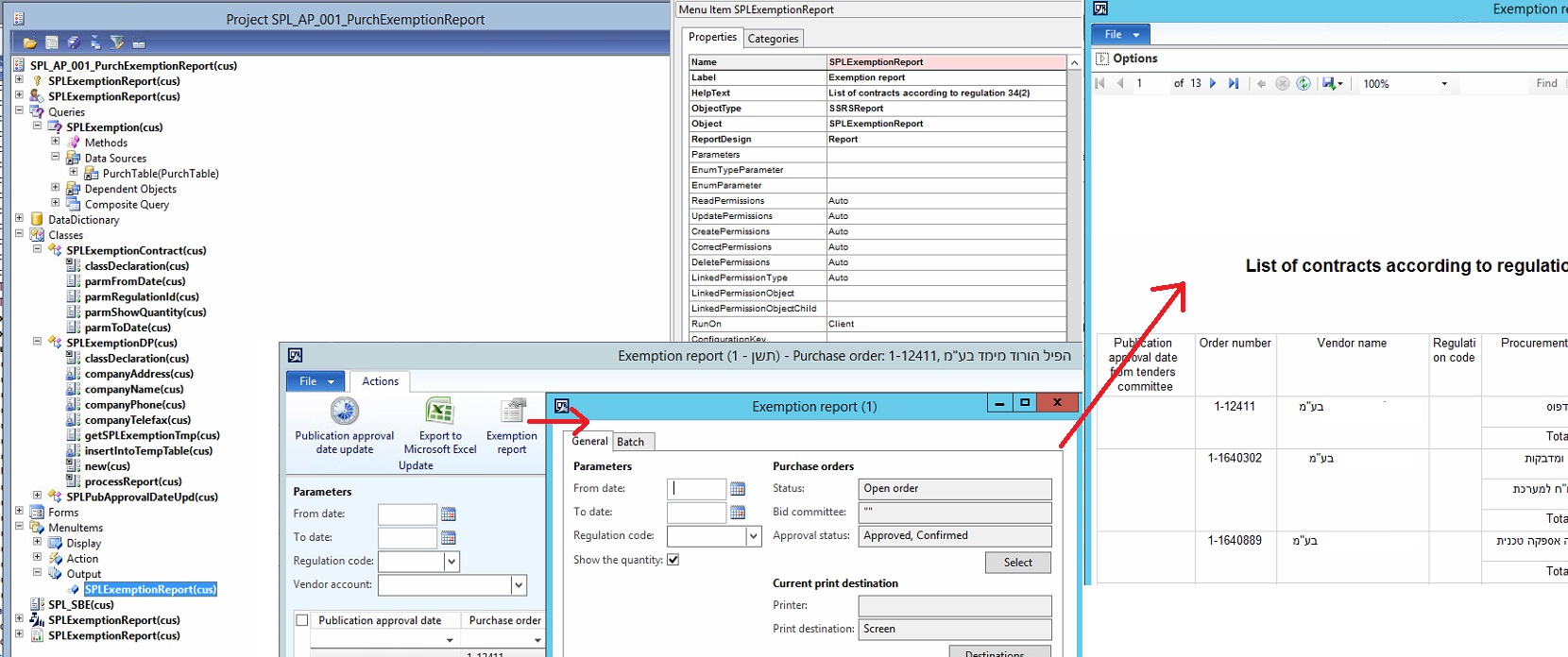

Example 0 : Customer without Contract
Query

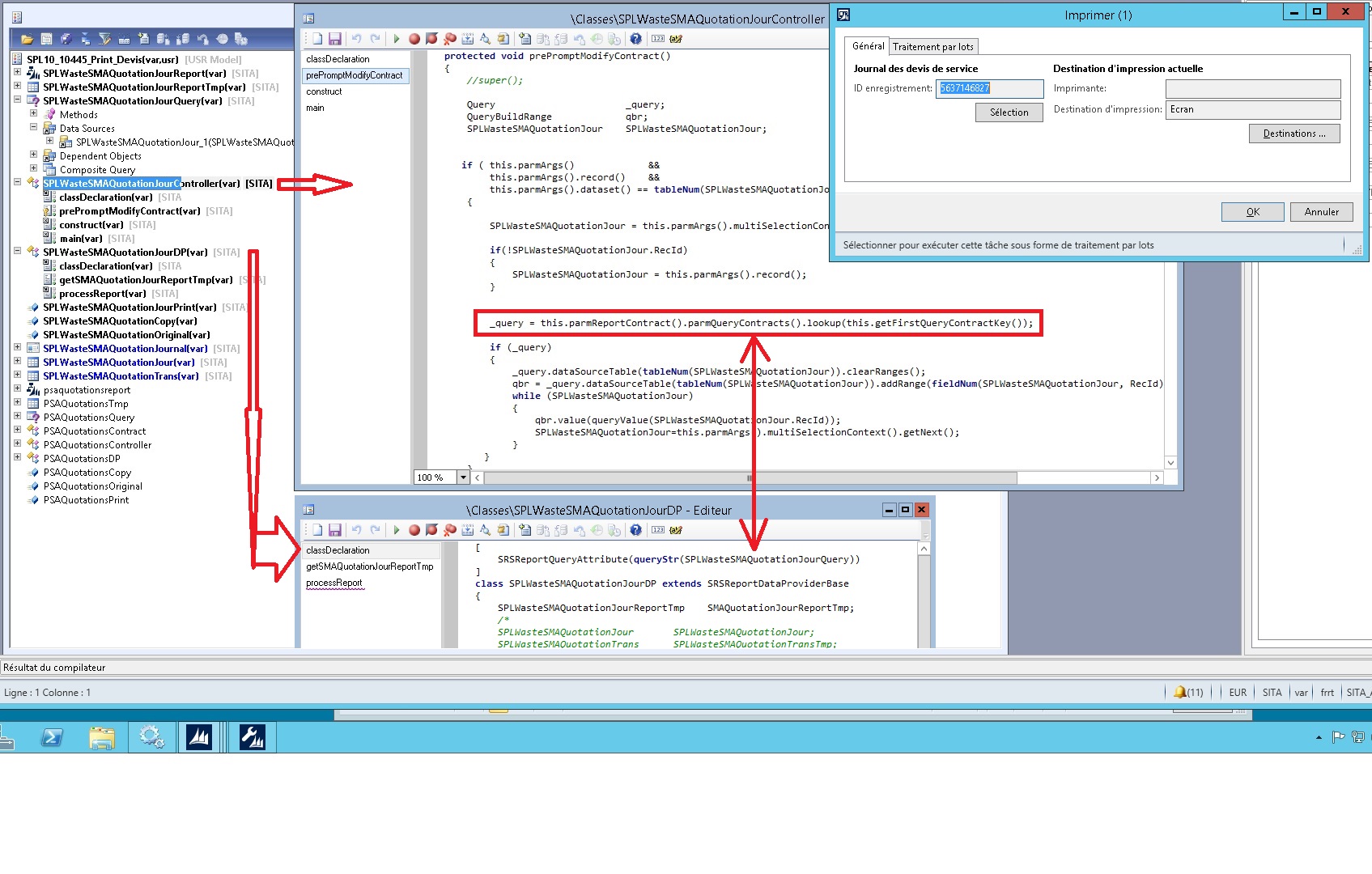

The query that is in the DP is known in the Controller.
The controller prompt the query after the method modifyContract is done.
The menu button launch the controller.
//Class Controller
class SPLWasteSMAQuotationJourController extends SrsReportRunController
{
}
protected void prePromptModifyContract()
{
//super();
Query _query;
QueryBuildRange qbr;
SPLWasteSMAQuotationJour SPLWasteSMAQuotationJour;
if ( this.parmArgs() &&
this.parmArgs().record() &&
this.parmArgs().dataset() == tableNum(SPLWasteSMAQuotationJour))
{
SPLWasteSMAQuotationJour = this.parmArgs().multiSelectionContext().getFirst();
if(!SPLWasteSMAQuotationJour.RecId)
{
SPLWasteSMAQuotationJour = this.parmArgs().record();
}
_query = this.parmReportContract().parmQueryContracts().lookup(this.getFirstQueryContractKey());
if (_query)
{
_query.dataSourceTable(tableNum(SPLWasteSMAQuotationJour)).clearRanges();
while (SPLWasteSMAQuotationJour)
{
qbr = _query.dataSourceTable(tableNum(SPLWasteSMAQuotationJour)).addRange(fieldNum(SPLWasteSMAQuotationJour, RecId));
qbr.value(queryValue(SPLWasteSMAQuotationJour.RecId));
SPLWasteSMAQuotationJour=this.parmArgs().multiSelectionContext().getNext();
}
}
}
}
public static SPLWasteSMAQuotationJourController construct()
{
return new SPLWasteSMAQuotationJourController();
}
public static void main(Args _args)
{
SPLWasteSMAQuotationJourController controller = SPLWasteSMAQuotationJourController::construct();
controller.parmArgs(_args);
controller.parmReportName(ssrsReportStr(SPLWasteSMAQuotationJourReport,Report));
controller.startOperation();
}
//Class DP
[
SRSReportQueryAttribute(queryStr(SPLWasteSMAQuotationJourQuery))
]
class SPLWasteSMAQuotationJourDP extends SRSReportDataProviderBase
{
SPLWasteSMAQuotationJourReportTmp SMAQuotationJourReportTmp;
}
[SRSReportDataSetAttribute(tablestr(SPLWasteSMAQuotationJourReportTmp))]
public SPLWasteSMAQuotationJourReportTmp getSMAQuotationJourReportTmp()
{
select * from SMAQuotationJourReportTmp;
return SMAQuotationJourReportTmp;
}
[SysEntryPointAttribute(false)]
public void processReport()
{
Query query;
QueryRun qr;
SPLWasteSMAQuotationJour SPLWasteSMAQuotationJour;
SPLWasteSMAQuotationTrans SPLWasteSMAQuotationTrans;
SMAServiceOrderTable SMAServiceOrderTable;
;
query = this.parmQuery();
qr = new QueryRun(query);
ttsbegin;
while (qr.next())
{
SMAQuotationJourReportTmp.clear();
SMAQuotationJourReportTmp.initValue();
SPLWasteSMAQuotationJour = qr.get(tablenum(SPLWasteSMAQuotationJour));
SMAServiceOrderTable = SPLWasteSMAQuotationJour.SMAServiceOrderTable();
//SPLWasteSMAQuotationJour = SPLWasteSMAQuotationJour::findRecId(SPLWasteSMAQuotationJourRecId);
while select SPLWasteSMAQuotationTrans
where SPLWasteSMAQuotationTrans.ServiceOrderId == SPLWasteSMAQuotationJour.ServiceOrderId
{
SMAQuotationJourReportTmp.clear();
if (ProjLineProperty::find(SPLWasteSMAQuotationTrans.ProjLinePropertyId).ToBeInvoiced == NoYes::Yes || true)
{
SMAQuotationJourReportTmp.QuotationId = SPLWasteSMAQuotationJour.ServiceOrderId;
SMAQuotationJourReportTmp.Description = SPLWasteSMAQuotationJour.Description;
SMAQuotationJourReportTmp.InterventionPostalAddress = SPLWasteSMAQuotationJour.InterventionPostalAddress;
if(SPLWasteSMAQuotationJour.InterventionPostalAddress)
{
SMAQuotationJourReportTmp.InterventionAddress = LogisticsPostalAddress::addressFromRecId(SPLWasteSMAQuotationJour.InterventionPostalAddress);
}
SMAQuotationJourReportTmp.PostalAddress = SMAQuotationJourReportTmp.InterventionAddress;
SMAQuotationJourReportTmp.CurrencyCode = SPLWasteSMAQuotationJour.CurrencyCode;
SMAQuotationJourReportTmp.ProjTransType = SPLWasteSMAQuotationTrans.TransactionType;
SMAQuotationJourReportTmp.SalesQty = SPLWasteSMAQuotationTrans.Qty;
SMAQuotationJourReportTmp.ProjCategoryId = SPLWasteSMAQuotationTrans.ProjCategoryId;
SMAQuotationJourReportTmp.CustomerName = SPLWasteSMAQuotationJour.customerName();
SMAQuotationJourReportTmp.ProjDescription = SPLWasteSMAQuotationTrans.Description;
}
SMAQuotationJourReportTmp.insert();
}
}
ttscommit;
}
Example 1 : Customer receipt localisation
//***************************************************************************************
//=== CONTRACT [DataContractAttribute,SysOperationContractProcessingAttribute(classStr(QCustReceiptJourReportUIBuilder))]
[
DataContractAttribute,
SysOperationContractProcessingAttribute(classStr(QCustReceiptJourReportUIBuilder))
]
public class QCustReceiptJourDC_IL implements SysOperationValidatable
{
LedgerJournalId journalNum;
DimensionDynamicAccount ledgerDimension;
NoYesId printReport;
}
[
DataMemberAttribute('JournalNum')
]
public LedgerJournalId parmJournalNum(LedgerJournalId _journalNum = journalNum)
{
journalNum = _journalNum;
return journalNum;
}
//***************************************************************************************
//=== CONTROLLER extends SrsReportRunController
class QCustReceiptJourCR_IL extends SrsReportRunController
{
LedgerJournalId journalNum;
DimensionDynamicAccount ledgerDimension;
NoYesId printReport;
}
public static void main(Args _args)
{
QCustReceiptJourCR_IL controller = new QCustReceiptJourCR_IL();
QCustReceiptJour_IL QCustReceiptJour_IL;
;
if(_args && _args.record())
QCustReceiptJour_IL = _args.record();
controller.parmReportName('QCustReceipt_IL.CustReceipt');
controller.parmDialogCaption("@GIL504");
controller.parmShowDialog(false);
if(_args && _args.parmEnum() == NoYes::Yes)
controller.parmShowDialog(true);
if(QCustReceiptJour_IL)
{
controller.parmJournalNum(QCustReceiptJour_IL.JournalNum);
controller.parmledgerDimension(QCustReceiptJour_IL.LedgerDimension);
controller.parmPrintReport(!controller.parmShowDialog());
}
controller.startOperation();
}
public LedgerJournalId parmJournalNum(LedgerJournalId _journalNum = journalNum)
{
journalNum = _journalNum;
return journalNum;
}
protected void preRunModifyContract()
{
QCustReceiptJourDC_IL contract = this.parmReportContract().parmRdpContract() as QCustReceiptJourDC_IL;
//07/04/13-SBE-BEGIN
SrsReportRdlDataContract rdlContract;
CustLanguageId languageId;
CustTable custTable;
//07/04/13-SBE-END
;
contract.parmPrintReport(true);
contract.parmJournalNum(this.parmJournalNum());
contract.parmledgerDimension(this.parmledgerDimension());
//07/04/13-SBE-BEGIN
languageId = "HE";
custTable = CustTable::find(DimensionStorage::ledgerDimension2AccountNum(this.parmledgerDimension()));
if (custTable.languageId() == "EN-US")
languageId ="EN-US";
rdlContract = this.parmReportContract().parmRdlContract();
rdlContract.parmLanguageId(languageId);
//07/04/13-SBE-END
}
//this method I don't know if we need it.
public void runReport()
{
QCustReceiptJourDC_IL contract = this.parmReportContract().parmRdpContract() as QCustReceiptJourDC_IL;
;
if(printReport || contract.parmPrintReport())
super();
}
//***************************************************************************************
//=== DATA PROVIDER extends SrsReportDataProviderPreProcess
[
SRSReportQueryAttribute(querystr(QCustReceipt_IL)),
SRSReportParameterAttribute(classstr(QCustReceiptJourDC_IL))
]
class QCustReceiptJourDP_IL extends SRSReportDataProviderBase
{
QReceiptJourTmp_IL QReceiptJourTmp_IL;
LedgerJournalId journalNum;
DimensionDynamicAccount ledgerDimension;
LedgerJournalTrans ledgerJournalTrans;
QCustReceiptJour_IL custReceiptJour_IL;
}
[AifDocumentCreateAttribute, SysEntryPointAttribute(true)]
public void processReport()
{
Query query;
QueryRun qRun;
QueryBuildDataSource qbs;
QueryBuildRange qbrjournalNum, qbrLedgerDimension;
QCustReceiptJourDC_IL contract = this.parmDataContract() as QCustReceiptJourDC_IL;
//contract<== (from SRSReportParameterAttribute(classstr(QCustReceiptJourDC_IL))
;
journalNum = contract.parmJournalNum();
ledgerDimension = contract.parmledgerDimension();
query = this.parmQuery(); //Query <== (from SRSReportQueryAttribute(querystr(QCustReceipt_IL))
// Get queryRun from report
qRun = new QueryRun(query);
qbs = qRun.query().dataSourceTable(tablenum(QCustReceiptJour_IL));
qbrjournalNum = qbs.addRange(fieldnum(QCustReceiptJour_IL,JournalNum));
qbrjournalNum.value(journalNum);
qbrLedgerDimension = qbs.addRange(fieldnum(QCustReceiptJour_IL,LedgerDimension));
qbrLedgerDimension.value(queryValue(ledgerDimension));
while (qRun.next())
{
custReceiptJour_IL = qRun.get(custReceiptJour_IL.TableId);
ledgerJournalTrans = qRun.get(ledgerJournalTrans.TableId);
this.calculateCustReceipt();
QCustReceiptJour_IL::updatePrinted(custReceiptJour_IL);
}
}
[
SRSReportDataSetAttribute(tablestr(QReceiptJourTmp_IL))
]
public QReceiptJourTmp_IL getQReceiptJourTmp_IL()
{
select QReceiptJourTmp_IL;
return QReceiptJourTmp_IL;
}
public void calculateCustReceipt()
{
;
QReceiptJourTmp_IL.initValue();
QReceiptJourTmp_IL.initFromQCustReceiptJour_IL(custReceiptJour_IL);
QReceiptJourTmp_IL.initFromLedgerJournalTrans(ledgerJournalTrans);
QReceiptJourTmp_IL.InitFromCustTable(custReceiptJour_IL.LedgerDimension);
QReceiptJourTmp_IL.initFromCompanyInfo();
QReceiptJourTmp_IL.QxShowLocalCurAmount(ledgerJournalTrans,CustVendACType::Cust);
QReceiptJourTmp_IL.insert();
}
//***************************************************************************************
//=== BUILDER extends SrsReportDataContractUIBuilder
public class QCustReceiptJourReportUIBuilder extends SrsReportDataContractUIBuilder
{
QCustReceiptJourDC_IL QCustReceiptJourDC_IL;
QCustReceiptJourCR_IL QCustReceiptJourCR_IL;
}
public void Build()
{
DialogField dlgPrintReport;
CustAccount CustAccount;
;
super();
// initializing data contract object
QCustReceiptJourDC_IL = this.dataContractObject();
QCustReceiptJourCR_IL = this.controller();
CustAccount = CustTable::findByLedgerDimension(QCustReceiptJourCR_IL.parmledgerDimension()).AccountNum;
// Get the parameter controls from dialog
dlgPrintReport = this.bindInfo().getDialogField(QCustReceiptJourDC_IL, methodStr(QCustReceiptJourDC_IL, parmPrintReport));
dlgPrintReport.label(strFmt("@GIL497",CustAccount));
QCustReceiptJourCR_IL.parmDialogCaption("@GIL504");
}
Example 1 - menu item, query ...
Example 1 - CustReceipt : Pictures
Menu Item call the controller class
menu item call the controller class
In the dataset Query = "SELECT * FROM QCustReceiptJourDP_IL.QReceiptJourTmp_IL"
The link is done with the Data Provider class QCustReceiptJourDP_IL
Dataset

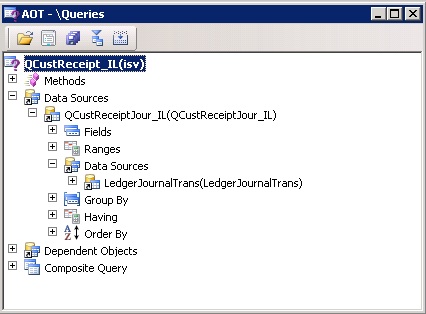

Example of query
Example of query
Example from internet
//***************************************************************************************
//=== CONTRACT ===[DataContractAttribute,SysOperationContractProcessingAttribute]***********************
[DataContractAttribute,
SysOperationContractProcessingAttribute(classstr(ProdPackListUIBuilder)) ]
public class ProdPacklistContract
{
SalesId salesId;
LineNum lineNum
}
[DataMemberAttribute('SalesId')]
public SalesId parmSalesId(SalesId _salesId=salesId)
{
salesId=_salesId;
return salesId;
}
[DataMemberAttribute('LineNum')]
public LineNum parmLineNum(LineNum _lineNum=LineNum)
{
lineNum =_lineNum;
return lineNum;
}
//***************************************************************************************
//=== CONTROLLER extends SrsReportRunController
public class ProdPackListController extends SrsReportRunController
{
}
public static void main(Args _args)
{
SrsReportRunController controller = new ProdPackListController ();
controller.parmReportName("ProdPackList.Report");
controller.parmArgs(_args);
controller.startOperation();
}
protected void preRunModifyContract()
{
GNProdPacklistContract contract;
contract = this.parmReportContract().parmRdpContract() as GNProdPacklistContract;
}
if you want to pass the values for the report before promting to user for input you can override this method
prePromptModifyContract
In my case I am overriding to pass the value and ranges for my query before showing the dialog to user.
protected void prePromptModifyContract()
{
QueryBuildRange queryBuildRangeSerial;
QueryBuildRange queryBuildRangeProd,qbrTransStatus;
QueryBuildDataSource queryBuildDataSource,queryBuildDataSource1,queryBuildDataSource2;
ProdTable localProdTable;
Query query;
// get the report query
query = this.parmReportContract().parmQueryContracts().lookup(this.getFirstQueryContractKey());
queryBuildDataSource = SysQuery::findOrCreateDataSource(query, tableNum(ProdTable));
queryBuildDataSource1 = SysQuery::findOrCreateDataSource(query, tableNum(InventDim));
queryBuildDataSource2 = SysQuery::findOrCreateDataSource(query, tableNum(InventTrans));
queryBuildRangeProd = SysQuery::findOrCreateRange(queryBuildDataSource, fieldNum(ProdTable,ProdId));
queryBuildRangeSerial = SysQuery::findOrCreateRange(queryBuildDataSource1, fieldNum(InventDim,inventSerialId));
qbrTransStatus = SysQuery::findOrCreateRange(queryBuildDataSource2, fieldNum(InventTrans,StatusReceipt));
qbrTransStatus.value(queryValue(StatusReceipt::Received));
if (this.parmArgs().dataset() == tableNum(ProdTable))
{
localProdTable = this.parmArgs().record();
queryBuildRangeProd.value(queryValue(localProdTable.ProdId));
this.parmShowDialog(true);
}
else if ((this.parmArgs().menuItemName() == menuitemOutputStr(ProdPacklist)) && (this.parmArgs().dataset() ==0))
{
this.parmShowDialog(true);
}
else
{
throw error(strFmt("Packing list can only printed from Production",funcName()));
}
}
//***************************************************************************************
//=== DATA PROVIDER extends SrsReportDataProviderPreProcess
//processReport() fill the tmp table.
[
SRSReportQueryAttribute(queryStr(ProdPackList)),
SRSReportParameterAttribute(classStr(ProdPacklistContract))
]
class ProdPacklistDP extends SrsReportDataProviderPreProcess
{
boolean showQuery;
boolean firstPage;
ProdTable prodTable;
ProdId prodId;
CompanyInfo companyInfo;
ProdBOM prodBOM;
InventDim inventDim;
ProdPackingSlipDetailsTmp prodPackingSlipDetailsTmp;
BarcodeSetup barCodeSetup;
BarcodeSetupId barcodeSetupId;
Barcode barcode;
}
//Create the method which return the tmp table object
[
SRSReportDataSetAttribute(tableStr('ProdPackingSlipDetailsTmp'))
]
public ProdPackingSlipDetailsTmp getProdPacklistDetailsTmp()
{
select prodPackingSlipDetailsTmp;
return prodPackingSlipDetailsTmp;
}
[SysEntryPointAttribute(false)]
public void processReport()
{
QueryRun queryRun;
ProdPacklistContract contract = this.parmDataContract() as ProdPacklistContract ;
// Set the userconnection to use on table.
// This is required to ensure that createdTransactionId of inserted record is different than default
transaction.
prodPackingSlipDetailsTmp.setConnection(this.parmUserConnection());
this.init();
this.setupBarcode();
queryRun = new QueryRun(this.parmQuery());
while (queryRun.next())
{
prodTable = queryRun.get(tableNum(ProdTable));
inventDim = queryRun.get(tableNum(InventDim));
prodId = prodTable.ProdId;
if(prodTable.InventRefType==InventRefType::Sales)
{
this.insertHeader();
this.insertDetails(prodId,inventDim.inventSerialId);
}
}
}
private void init()
{
companyInfo = CompanyInfo::find();
firstPage = true;
}
//BP Deviation documented
protected BarCodeString barcode(str _SerialNumber)
{
str jobId = strupr(_SerialNumber);
if (barcodeSetup.validateBarcode(jobId))
{
barcode.string(true, jobId);
barcode.encode();
}
else
{
throw(error(strfmt("@SYS41409", barcode.barcodeType(), jobId)));
}
return barcode.barcodeStr();
}
protected void setupBarcode()
{
barcodeSetupId = JmgParameters::find().getBarcodeSetupId();
barcodeSetup = BarcodeSetup::find(barcodeSetupId);
barcode = barcodeSetup.barcode();
}
// assigns the data into header information first
private void insertHeader()
{
prodPackingSlipDetailsTmp.clear();
prodPackingSlipDetailsTmp.initValue();
prodPackingSlipDetailsTmp.SalesId=prodTable.InventRefId;
prodPackingSlipDetailsTmp.SerialNumber=inventDim.inventSerialId;
prodPackingSlipDetailsTmp.ProdItemId = prodTable.ItemId;
prodPackingSlipDetailsTmp.Description = prodTable.Name;
prodPackingSlipDetailsTmp.Customer = SalesTable::find(prodPackingSlipDetailsTmp.SalesId).CustAccount;
prodPackingSlipDetailsTmp.initValue();
prodPackingSlipDetailsTmp.barcodeSetupId=barCodeSetup.barcodeSetupId;
prodPackingSlipDetailsTmp.barcodeType=barCodeSetup.barcodeType;
prodPackingSlipDetailsTmp.fontName=barCodeSetup.fontName;
prodPackingSlipDetailsTmp.fontSize=barCodeSetup.fontSize;
prodPackingSlipDetailsTmp.maximumLength=barCodeSetup.maximumLength;
prodPackingSlipDetailsTmp.minimumLength=barCodeSetup.minimumLength;
prodPackingSlipDetailsTmp.SerialNumberBarCode=this.barcode(inventDim.inventSerialId);
}
private void insertDetails(ProdId _prodId,InventSerialId _inventSerialId)
{
SMAServiceObjectTable smaServiceObjectTable;
SMAServiceBOMTable smaServiceBOMTable;
ProdBOM prodBOMTable;
while select prodBOMTable order by InventTransId asc
where prodBOMTable.ProdId==_prodId
{
if(InventTable::Find(prodBOMTable.ItemId).PrintItemProduction)
{
prodPackingSlipDetailsTmp.ItemId=prodBOMTable.ItemId;
prodPackingSlipDetailsTmp.Qty=prodBOMTable.BOMQty;
prodPackingSlipDetailsTmp.Name=prodBOMTable.itemName();
if(prodBOMTable.SerialnoControlled())
{
select TemplateBOMId,ServiceObjectId from smaServiceObjectTable
where smaServiceObjectTable.InventSerialId==_inventSerialId
&& smaServiceObjectTable.ReferenceId==_prodId
&& smaServiceObjectTable.ReferenceCategory==InventTransType::Production
join InventSerialId from smaServiceBOMTable where
smaServiceBOMTable.ItemId==prodBOMTable.ItemId
&& smaServiceBOMTable.ObjectId==smaServiceObjectTable.ServiceObjectId
&& smaServiceBOMTable.ServiceBOMId==smaServiceObjectTable.TemplateBOMId;
prodPackingSlipDetailsTmp.SerialNo=smaServiceBOMTable.InventSerialId;
}
prodPackingSlipDetailsTmp.SalesFormNotes=FormLetterRemarks::find(companyInfo.LanguageId,FormTextType::ProductionPackingList).Txt;
prodPackingSlipDetailsTmp.insert();
prodPackingSlipDetailsTmp.SerialNo="";
}
}
}
//***************************************************************************************
//=== BUILDER
public class ProdPackListUIBuilder extends SysOperationAutomaticUIBuilder
{
DialogField dialogSalesId;
DialogField dialogSalesLine;
SalesId salesId;
LineNum lineNum;
ProdPacklistContract prodPacklistContract;
ProdPackListController packListcontroller;
QueryRun queryRun;
Query baseQuery;
ProdTable prodTable;
}
public void build()
{
FormBuildGroupControl grp;
Dialog dialogLocal = this.dialog();
;
prodPacklistContract = this.dataContractObject();
if(this.validateCaller())
{
dialogLocal.addGroup("Sales");
this.addDialogField(methodStr(ProdPacklistContract,parmSalesId), prodPacklistContract);
this.addDialogField(methodStr(ProdPacklistContract,parmSalesLine), prodPacklistContract);
}
}
public SysOperationController controller()
{
SysOperationController ret;
ret = super();
packListcontroller=ret;
return ret;
}
private str getFirstQuery()
{
// this will just return the first contract key in the Map
Map queryContracts =packListcontroller.parmReportContract().parmQueryContracts();
MapEnumerator mapEnum;
str firstQueryKey;
if(queryContracts)
{
mapEnum = queryContracts.getEnumerator();
if(mapEnum.moveNext())
{
firstQueryKey = mapEnum.currentKey();
}
}
return firstQueryKey;
}
public void getFromDialog()
{
prodPacklistContract = this.dataContractObject();
if(this.validateCaller())
{
salesId=dialogSalesId.value();
LineNum=dialogSalesLine.value();
this.validateData(salesId,LineNum);
}
super();
}
public void initializeFields()
{
prodPacklistContract = this.dataContractObject();
}
private void initquery()
{
baseQuery=packListcontroller.parmReportContract().parmQueryContracts().lookup(this.getFirstQuery());
QueryRun=new QueryRun(baseQuery);
while (queryRun.next())
{
prodTable=queryRun.get(tableNum(ProdTable));
if(prodTable)
break;
}
}
public void lookupSalesId(FormStringControl _control)
{
Query query = new Query();
SysTableLookup sysTablelookup;
sysTablelookup =SysTableLookup::newParameters(tableNum(SalesTable),_control);
sysTablelookup.addLookupfield(fieldNum(SalesTable,SalesId));
sysTablelookup.addLookupfield(fieldnum(SalesTable,CustAccount));
sysTablelookup.addLookupMethod(tableMethodStr(SalesTable,customerName));
query.addDataSource(tableNum(SalesTable));
if(ProdTable.InventRefType==InventRefType::Sales)
{
query.dataSourceTable(tableNum(SalesTable)).addRange(fieldNum(SalesTable, SalesId)).value(queryValue(ProdTable.InventRefId));
}
sysTablelookup.parmQuery(query);
sysTablelookup.performFormLookup();
}
public void lookupSalesLine(FormStringControl _control)
{
Query query = new Query();
SysTableLookup sysTablelookup;
sysTablelookup =SysTableLookup::newParameters(tableNum(SalesLine),_control);
sysTablelookup.addLookupfield(fieldnum(SalesLine,LineNum));
sysTablelookup.addLookupfield(fieldnum(SalesLine,Itemid));
sysTablelookup.addLookupfield(fieldNum(SalesLine,SalesId));
query.addDataSource(tableNum(SalesLine));
query.dataSourceTable(tableNum(SalesLine)).addRange(fieldNum(SalesLine, SalesId)).value(dialogSalesId.value());
query.dataSourceTable(tableNum(SalesLine)).addRange(fieldNum(SalesLine, ItemId)).value(queryValue(prodTable.ItemId));
if(prodTable.InventRefType==InventRefType::Sales)
{
query.dataSourceTable(tableNum(SalesLine)).addRange(fieldNum(SalesLine, InventtransId)).value(queryValue(prodTable.InventRefTransId));
}
sysTablelookup.parmQuery(query);
sysTablelookup.performFormLookup();
}
//Override the postbuild function to bind the lookups for the fields.
public void postBuild()
{
super();
if(this.validateCaller())
{
prodPacklistContract=this.dataContractObject();
this.initquery();
// From binding info, get the dialog field for racecode attribute and add button
dialogSalesId = this.bindInfo().getDialogField(
this.dataContractObject(),
methodStr(ProdPacklistContract,parmSalesId));
if (dialogSalesId)
{
dialogSalesId.lookupButton(2);
}
dialogSalesId.value(" ");
// register override method for lookup cust Group
dialogSalesId.registerOverrideMethod(methodStr(FormStringControl, lookup), methodStr(ProdPackListUIBuilder, lookupSalesId), this);
// register override method for modified
dialogSalesId.registerOverrideMethod(methodStr(FormStringControl, modified), methodStr(ProdPackListUIBuilder, SalesIdModified), this);
//binding info for customer drop down
dialogSalesLine = this.bindInfo().getDialogField(this.dataContractObject(),
methodStr(ProdPacklistContract,parmSalesLine));
dialogSalesLine.value(" ");
// register override method for lookup customer
dialogSalesLine.registerOverrideMethod(methodStr(FormStringControl, lookup), methodStr(ProdPackListUIBuilder, lookupSalesLine), this);
if (dialogSalesLine)
{
dialogSalesLine.lookupButton(2);
}
if(ProdTable.InventRefType==InventRefType::Sales)
{
dialogSalesId.value(prodTable.InventRefId);
dialogSalesLine.value(SalesLine::findInventTransId(prodTable.InventRefTransId).LineNum);
prodPacklistContract.parmSalesId(prodTable.InventRefId);
prodPacklistContract.parmSalesLine(SalesLine::findInventTransId(prodTable.InventRefTransId).LineNum);
dialogSalesId.enabled(false);
dialogSalesLine.enabled(false);
}
if(prodTable.RecId==0)
{
throw error(strFmt("please select valid production order"));
}
}
else
{
prodPacklistContract.parmSalesId("");
}
}
// if the salesId is modified we have to load the sales lines
public boolean SalesIdModified(FormStringControl _control)
{
dialogSalesId.value(_control.valueStr());
dialogSalesLine.value('');
return true;
}
private boolean validateCaller()
{
if((packListcontroller.parmArgs().menuItemName() == menuitemOutputStr(ProdPacklist)) && (packListcontroller.parmArgs().dataset() ==0))
return false;
else
return true;
}
private void validateData(SalesId _salesId,LineNum _lineNum)
{
boolean ret=true;
SalesLine salesLine;
if(this.validateCaller())
{
if(_salesId=="")
throw error(strFmt("this production is not linked to sales %1",prodTable.ProdId));
if(_lineNum==0)
throw error(strFmt("this production is not linked to sales %1 ",_salesId,prodTable.ProdId));
if(ret)
{
salesLine= SalesLine::find(_salesId,_lineNum);
if(salesLine && salesline.ItemId != prodTable.ItemId)
{
throw error(strFmt("this production is not linked to sales %1 ,%2",salesLine.ItemId,prodTable.ItemId));
}
}
}
}
This was the new functionality for the adding the lookups for the fields using builder class.
Code simple without controller
If we don't need to pass parameters from the form to the report, we don't need a controller.
Simple report
//=========================================================================//
//Report without controller: No need of controller because
//there is not initialization
//=========================================================================//
//Contract
[DataContractAttribute]
public class SPLExemptionContract
{
FromDate fromDate;
ToDate toDate;
SPLRegulationId regulationId;
boolean showQuantity;
}
[
DataMemberAttribute('FromDate'),
SysOperationLabelAttribute(literalstr("@SYS5209")),
SysOperationDisplayOrderAttribute('01')
]
public FromDate parmFromDate(FromDate _fromDate = fromDate)
{
fromDate = _fromDate;
return fromDate;
}
//DP
[
SRSReportQueryAttribute(queryStr(SPLExemption)),
SRSReportParameterAttribute(classstr(SPLExemptionContract))
]
public class SPLExemptionDP extends SRSReportDataProviderBase
{
PurchTable purchTable;
SPLExemptionTmp SPLExemptionTmp;
FromDate fromDate;
ToDate toDate;
SPLRegulationId regulationId;
boolean showQuantity;
CompanyInfo companyInfo;
LogisticsAddressing address;
Phone phone;
TeleFax teleFax;
Name name;
boolean addressCached;
boolean phoneCached;
boolean telefaxCached;
boolean companyNameCached;
boolean insertCompanyLogo;
}
[
SRSReportDataSetAttribute('SPLExemptionTmp')
]
public SPLExemptionTmp getSPLExemptionTmp()
{
select * from SPLExemptionTmp;
return SPLExemptionTmp;
}
///
/// Processes the report business logic.
///
///
/// This is the main method that processes the whole report logic and inserts the data into the
/// temporary table.
///
[SysEntryPointAttribute(false)]
public void processReport()
{
QueryRun qr;
SysDictEnum sysDictEnum;
SPLExemptionContract contract = this.parmDataContract() as SPLExemptionContract;
//
PurchLine purchLine;
SPLExemptionTmp SPLExemptionTmpLocal;
TransDate WFApprovalDate;
int i;
//
companyInfo = CompanyInfo::find();
insertCompanyLogo = true;
fromDate = contract.parmFromDate();
toDate = contract.parmToDate();
regulationId = contract.parmRegulationId();
showQuantity = contract.parmShowQuantity();
qr = new QueryRun(this.parmQuery());
while (qr.next())
{
purchTable = qr.get(tableNum(PurchTable));
purchLine = qr.get(tableNum(PurchLine));
//this.insertIntoTempTable();
if (purchTable.PurchStatus != PurchStatus::Backorder)
continue;
if ((purchTable.DocumentState != VersioningDocumentState::Approved) &&
(purchTable.DocumentState != VersioningDocumentState::Confirmed))
continue;
if (purchTable.mlm_BidCommittee != "")
continue;
if (purchLine.itemId == "23840")
continue;
if (purchTable.dataAreaId != curext())
{
changecompany(purchTable.DataAreaId)
{
WFApprovalDate = purchTable.SPLWorkflowApprovalDate();
}
}
else
{
WFApprovalDate = purchTable.SPLWorkflowApprovalDate();
}
if ( ((purchTable.SPLRegulationId == regulationId) || !regulationId) &&
WFApprovalDate &&
((WFApprovalDate More= fromDate) || !fromDate) &&
((WFApprovalDate Less= toDate ) || !toDate) )
{
i++;
SPLExemptionTmpLocal.clear();
SPLExemptionTmpLocal.PurchId = purchTable.PurchId;
SPLExemptionTmpLocal.PurchName = purchTable.PurchName;
SPLExemptionTmpLocal.SPLPubApprovalDate = purchTable.SPLPubApprovalDate;
SPLExemptionTmpLocal.LineAmount = purchLine.LineAmount;
SPLExemptionTmpLocal.ProcurementCategory = purchLine.ProcurementCategory;
SPLExemptionTmpLocal.CompanyId = purchLine.dataAreaId;
SPLExemptionTmpLocal.SPLRegulationId = purchTable.SPLRegulationId;
SPLExemptionTmpLocal.CurrencyCode = purchTable.CurrencyCode;
SPLExemptionTmpLocal.insert();
}
}
while select PurchId, PurchName, SPLPubApprovalDate, ProcurementCategory, CompanyId,
SPLRegulationId, CurrencyCode, sum(LineAmount) from SPLExemptionTmpLocal
group by PurchId, PurchName, SPLPubApprovalDate, ProcurementCategory, CompanyId,
SPLRegulationId, CurrencyCode
{
SPLExemptionTmp.clear();
SPLExemptionTmp.PurchId = SPLExemptionTmpLocal.PurchId;
SPLExemptionTmp.PurchName = SPLExemptionTmpLocal.PurchName;
SPLExemptionTmp.SPLPubApprovalDate = SPLExemptionTmpLocal.SPLPubApprovalDate;
SPLExemptionTmp.LineAmount = SPLExemptionTmpLocal.LineAmount;
SPLExemptionTmp.ProcurementCategory = SPLExemptionTmpLocal.ProcurementCategory;
SPLExemptionTmp.CompanyId = SPLExemptionTmpLocal.CompanyId;
SPLExemptionTmp.CategoryName = EcoResCategory::find(SPLExemptionTmpLocal.ProcurementCategory).Name;
SPLExemptionTmp.SPLRegulationId = SPLExemptionTmpLocal.SPLRegulationId;
SPLExemptionTmp.CurrencyCode = SPLExemptionTmpLocal.CurrencyCode;
SPLExemptionTmp.CompanyAddress = this.companyAddress();
SPLExemptionTmp.CompanyName = this.companyName();
SPLExemptionTmp.CompanyPhone = this.companyPhone();
SPLExemptionTmp.CompanyTeleFax = this.companyTelefax();
if (insertCompanyLogo)
{
SPLExemptionTmp.CompanyLogo = FormLetter::companyLogo();
insertCompanyLogo = false;
}
else
{
SPLExemptionTmp.CompanyLogo = conNull();
}
if (showQuantity)
SPLExemptionTmp.PrintNumberLines = NoYes::Yes;
else
SPLExemptionTmp.PrintNumberLines = NoYes::No;
SPLExemptionTmp.insert();
}
}
Code simple with controller
//If we need to pass parameters from the form to the report, we need a controller.
Simple report
